How to measure

These are the recommended minimum tolerances that you should add to your radiator, however you may wish to have a deeper top shelf for placing ornaments. We find that we manufacture more cabinets with a top shelf depth of 16.5 cm - 18 cm (6.5 - 7 inches) for this reason. You may wish to take into account items such as unsightly phone and plug sockets, which may be covered up by ordering a wider cabinet.

Please remember that each cabinet is constructed to your specification and if you are in any doubt about your measurements, please telephone us as we cannot be held responsible for errors in measuring.

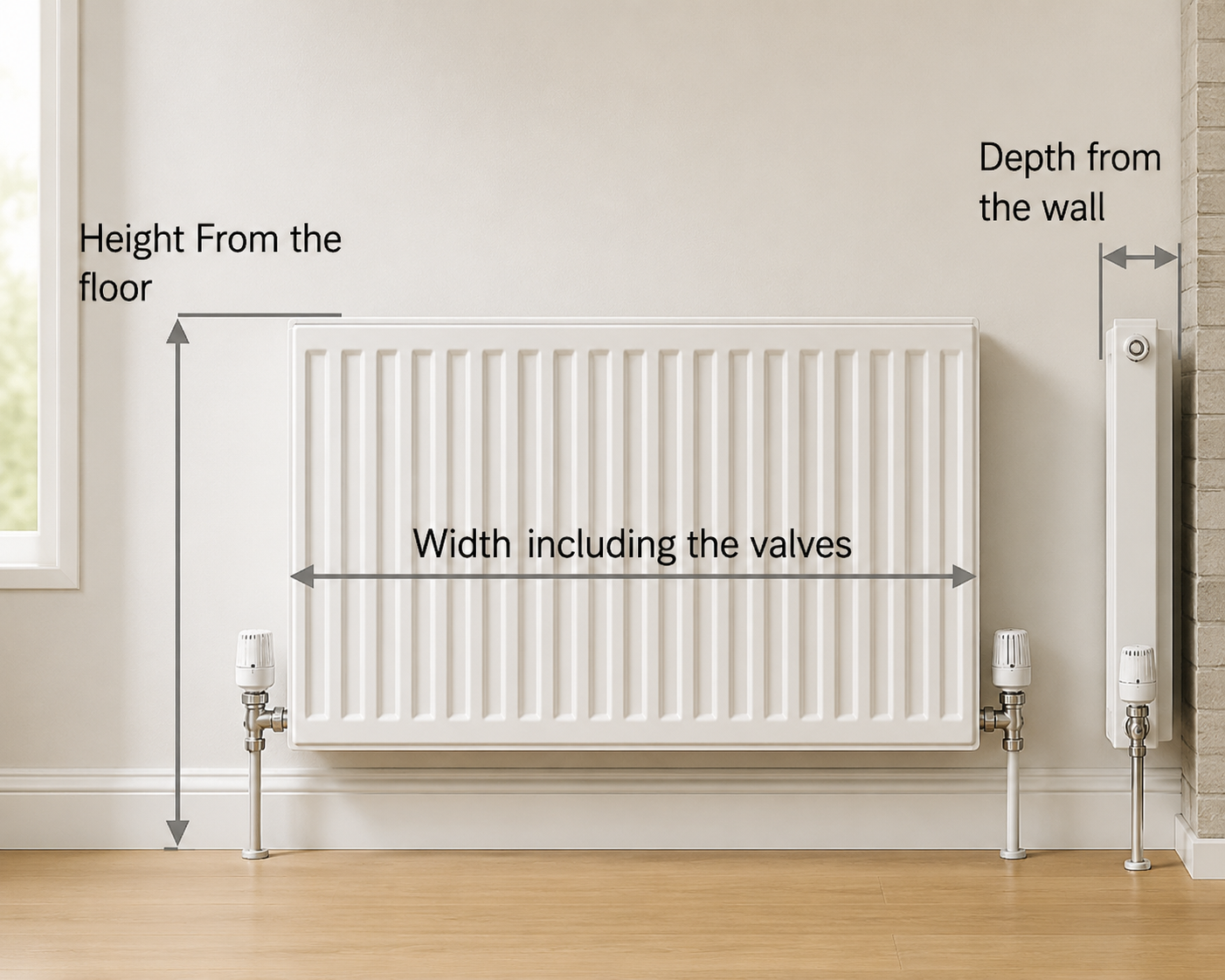

Width

Measure from the outside of one valve knob to the outside of the other and add 10 centimetres (4 inches). This will give you the maximum external width of your cabinet.

Height

Measure from the floor to the top of the radiator and add 5 centimetres (2 inches). This will give you the maximum external height of your cabinet.

Depth

Measure from the wall behind the radiator to the furthest protruding point outwards and add 6.5 centimetres (2.5 inches). This will give you the maximum depth of the top shelf of your cabinet.

Number of panels

Smaller cabinets will feature single air vents to both the top and bottom of the cabinet and a single grille panel. Medium sized cabinets up to approximately 1900mm wide will be fitted with two fretwork panels. Large cabinets may be specified with three panels which you find examples of across our site. Please contact us to discuss your specific requirements.
